12.1 Inch For Nissan Pathfinder 2012-2020 Android radio installation video And Guidance On Handling Common Installation Anomalies

1、How to deal with the air conditioner not working after installation?

1. After installation, the product retains the original carair conditioning. Checkif the original carair conditioning plug is plugged back into the original car air conditioning panel.

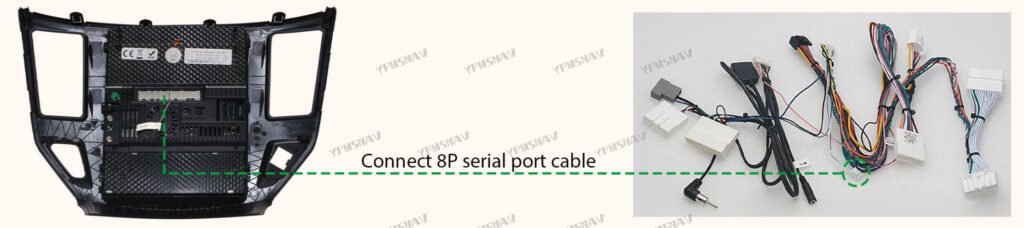

2.Check if the 8P serial port cable is properly connected, as shown in the following figure.

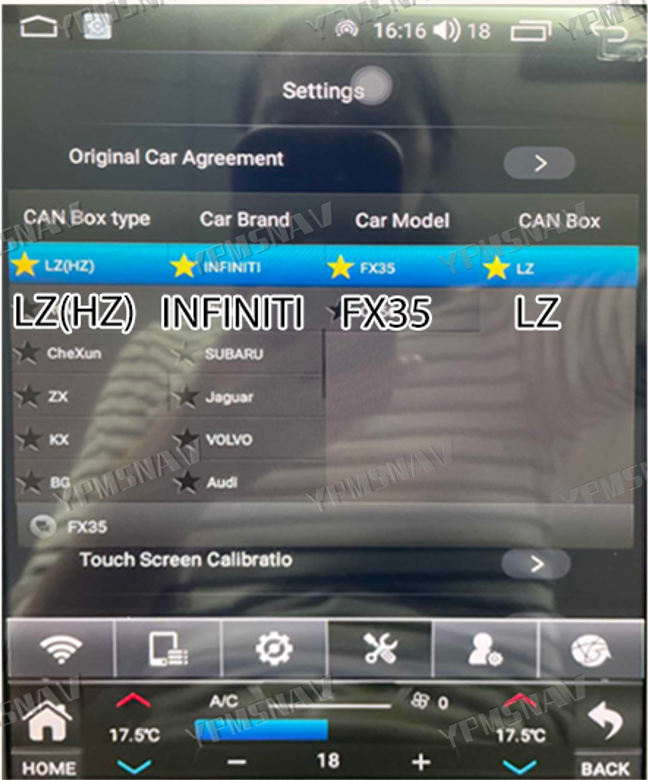

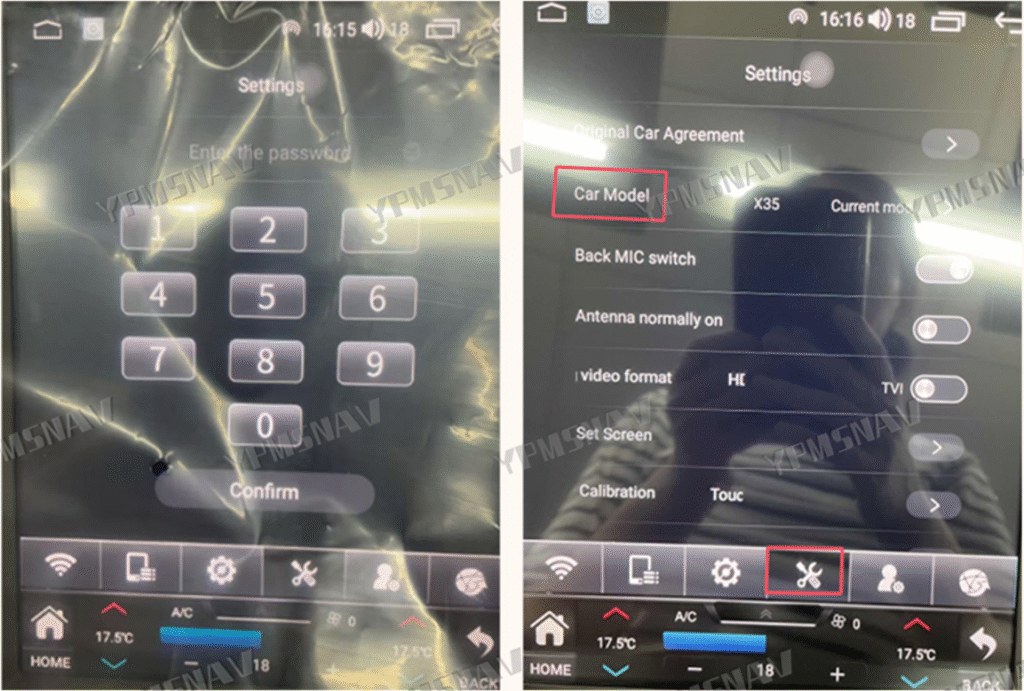

3.Check protocol settings: Go to Settings – Original Vehicle Settings – Factory Settings (123456)-Vehicle Type Settings. As shown in the figure below.

2、Basic information of the radio and compatible functions.
The radio uses the Android system. Supports both manual and automatic transmission vehicles, without retaining the original vehicle’s sync system function. If you need to keep the original car’s sync system, please contact the online customer service and purchase a radio compatible with the original car’s sync system. The radio supports online video playback, online music playback, Google Maps navigation, GPS positioning function, 4G sim card network communication, making phone calls, WiFi connection and hotspot creation, Bluetooth connection, carplay function and Android auto function Supports the original vehicle steering wheel control (requires learning Settings), supports 48-band DSP, supports the original vehicle SONY amplifier system and BOSE amplifier system, supports B&O amplifier system (if your original vehicle has this amplifier system, you need to purchase a dedicated one separately. Now, this playback system is a special system and you need to purchase dedicated cables separately), supports the original vehicle rear camera Supports post-modification of the rear camera, supports 360-degree panoramic camera, supports free download of apps (for specific downloads, please contact the online customer service), supports Google Browser search and download…

3、Precautions before installation.
Before installation, the user needs to turn off the car engine and do not install it while it is powered on. Otherwise, it may cause the radio fuse to burn out due to voltage issues, leading to radio damage. If the radio is damaged due to the customer installing it while it is powered on, only after-sales service assistance for repair is provided, and returns and refunds are not supported. Before installing the radio in the car, please check if it is damaged. If there is no damage or missing parts, you can install it with confidence. If there are any problems, please contact the online after-sales customer service in time. It is strictly forbidden to initiate returns and refunds without contact. The seller has the right to refuse returns and refunds. Once the radio is successfully installed in the car, returns and refunds are not supported. If it is disassembled and returned after installation, it will be regarded as man-made damage. After disassembly, the radio cannot be resold, but after-sales repair technical support will be provided. If you encounter any malfunction during the installation process and are unable to install the radio independently, you can follow the installation instructions in this article for installation. Meanwhile, if you are unable to complete the installation independently, please have a professional installation engineer do it. If some functions are still not working, you need to take pictures or record videos of the current problem to show the location and send them to our professional after-sales customer service. We will make a judgment based on the relevant materials you provide. You need to follow our guidance and operate strictly in accordance with our instructions to ensure that your problem can be solved smoothly. Online video guidance is supported when necessary. If you are a purchasing user from the United States, local technical engineers in the United States can provide phone guidance when necessary. (Appointment is required.) We will provide after-sales technical services within one year after the buyer’s purchase. You can contact us at any time.

4、The radio won’t turn on. How can I solve this problem?
4.1 The first step is to check whether the radio is damaged and whether the fuse under the power cord interface of the radio installed in the car has burned out. If it burns out, please replace it to ensure normal operation.
4.2 The second step is to check one by one whether the dedicated cables that come with the Android walkie-talkie are connected correctly according to the installation video. Incorrect connection methods may also cause power failures, which may result in the radio failing to start.

4.3The third step is to check one by one whether the dedicated cables that come with the Android walkie-talkie are connected correctly according to the installation video. Incorrect connection methods may also cause power failures, which in turn prevent the radio from starting.

If none of the above is available, please check whether your original car’s power supply is powered. There are several verification methods as follows: reinstall your original car radio, start the vehicle to see if it can be powered on. If it can be powered on, then the power cord is working properly and the original car radio is turned on normally. If the original car radio is not working, please check whether the power cord of your original car is short-circuited and burned out. If the original car radio is found to be in good condition after inspection, but the Android radio cannot be turned on and enter the system when reconnected, and all the physical buttons of the original car air conditioner can be powered on and display, please check whether the fuse of the Android radio is blown. If it is blown, please replace the fuse with a new one and the Android radio will work again. It should also be noted that an Android radio requires a stable voltage of at least 12V to function. If the voltage is too low, it cannot be turned on.

5、What should be done when the radio stops working in reverse mode?
The first step is to determine whether your camera is an original camera provided by the vehicle, a later-modified and added camera, or a 360-degree panoramic camera. The second step is to enter the Android radio settings and find the camera parameter settings. If you are using the original camera, the resolution is usually set to 720P because the resolution of the original camera is relatively low. Or you can consider using the camera we provide or purchasing a 1080P high-definition resolution camera, and then select 1080P resolution in the radio. If your vehicle has a 360-degree camera, the radio cannot work directly. You need to purchase a 360-degree panoramic camera decoder module separately, otherwise the original 360-degree camera will not work. If it is a 360-degree panoramic camera you later modified, please purchase and use the 360-degree panoramic camera kit with an independent host. If you want to add 360-degree panoramic images through modification, please contact the online customer service for purchase methods separately.

6.How to deal with no sound after installation
1.First, check whether the special cables are properly connected and there are no loose or missing cables.
2. Check protocol settings: Go to Settings – Original Vehicle Settings – Factory Settings (123456) -Vehicle Model Settings.

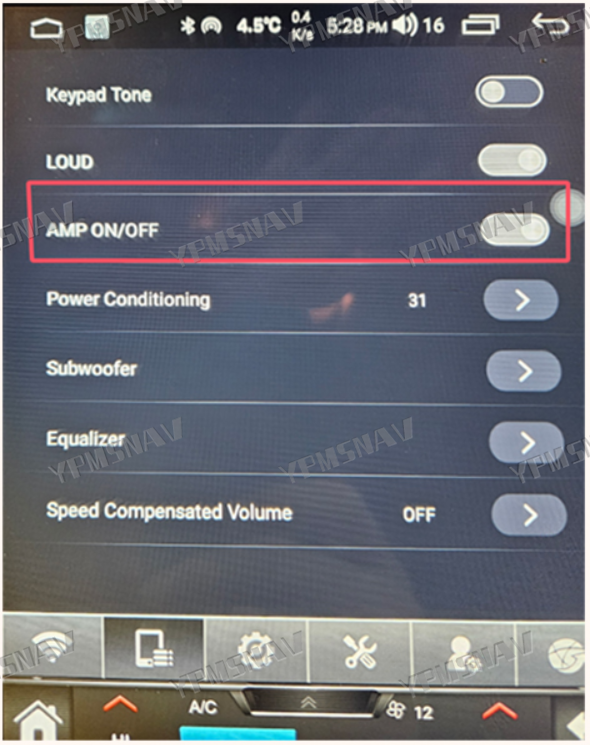

3. Check if the power amplifier switch is turned on, as shown in the following figure

7.Why doesn’t the steering wheel control work?

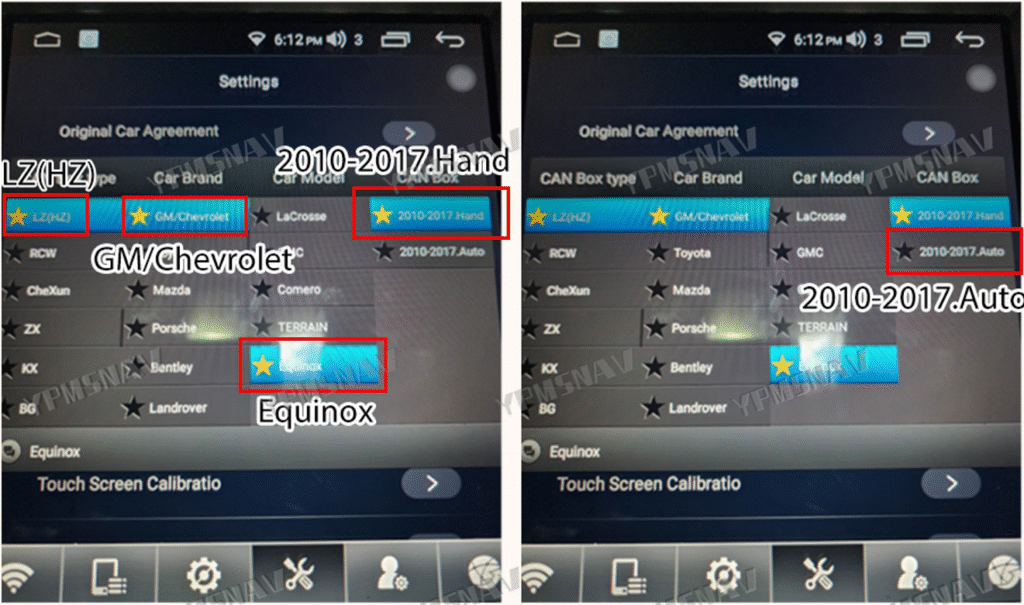

Please check if all wiring is properly connected, as shown in the wiring diagram above. Recheck the protocol settings and go to Settings -Original Vehicle Settings -Factory Settings (123456) -Vehicle Type Settings. As shown in the figure below.
Check if the 8P serial port cable is properly connected.

8.How to set the temperature display to Fahrenheit?

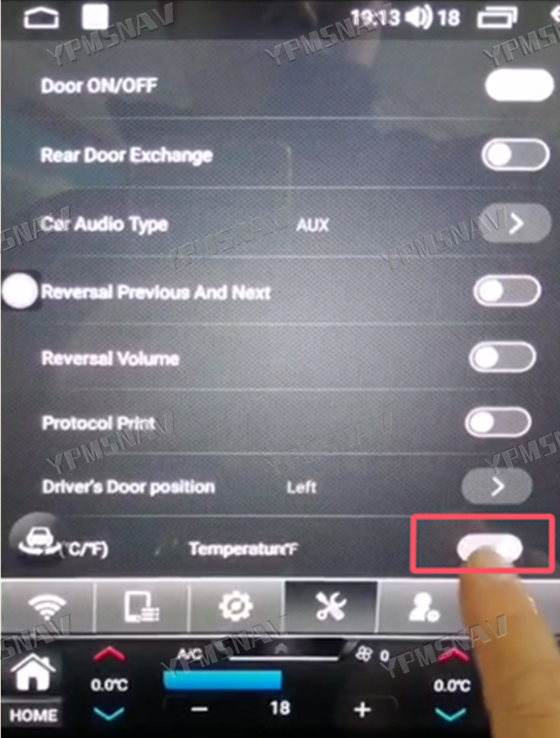

Go to Settings – Factory Settings (123456)- Original Vehicle Settings – Temperature Unit Settings, as shown in the following figure.

8.If it’s not the above problem, how should I deal with it?
The first step is to take pictures and videos of your current problem and then send them to our professional after-sales customer service. The contact information can be found at the bottom of the website or on the paper of the after-sales service. It is highly recommended to use WhatsApp for communication and interaction, as it will be convenient for guiding your installation. Replying to messages is also faster.

The second step is that you need to tell me the brand, model, production year of your original car, and a real picture of the original car radio, which should be in the turned on state, to facilitate the confirmation of your original car system. And please provide me with a screenshot of the order you purchased at that time. It is used to confirm the product information you purchased at that time.

The third step is that after we receive your message, we will have an initial communication with you. If the initial Settings cannot solve the problem, we will suggest an online video communication. At the same time, you need to cooperate with us and provide the video materials we need. If you want to have a video call, please make an appointment with us in advance so that we can arrange for an engineer to connect with you. We have a time difference issue, so please understand. If you are an American user, we have professional engineers in the US to support phone or video guidance. If you need this service, you need to make an appointment with us in advance.

The fourth step is that our after-sales service will not charge you any extra fees. However, if you need to replace the hardware equipment, you will have to pay a certain amount of money. The specific cost will depend on the parts you actually need to replace..”
